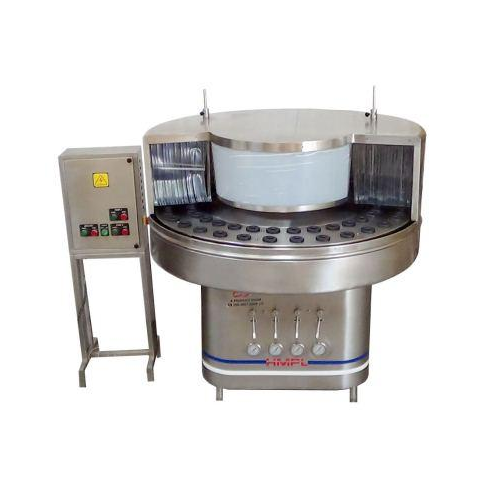

Automatic Rotary Bottle Washing Machine

SALIENT FEATURES

  • Geneva Mechanism.
  • Four inner (Included one air wash) & one outer.
  • Sequence of washes to customer's choice.
  • Easy operation.
  • Stationary nozzles eliminate contamination of water cycles.
  • Easy loading and unloading.
  • Individual solenoid valve for each washing sequence, that         eliminates carbon
  • plate and other accessories reduce leakage and         maintenance to minimum.
  • Higher capacity centrifugal pumps to wash bigger bottles         (500 & 1000 ml.).
  • The stationary nozzles avoid chipping of bottle necks.
  • Pumps and tanks are mounted on portable stand for easy         maintenance.
  • Bottle guide system especially for lightweight bottle.
  • Pumps and Tanks are mounted on portable stand for easy         maintenance.
  • Separate panel control to avoid any short circuit due to         spraying of water.
  • S.S. glycerin fill pressure meter.

TECHNICAL DETAILS

Output / Hour

2600 to 6000 Nos.

No. of Container Holder

64

Direction of Movement

Clock wise

Electrical
Specification

Main Motor

0.5 HP / 415 Volts / 50 Hz.

Pump Two Nos.

1HP X 2 = 2 HP / 415 Volts / 50 HZ

Electric Heater

3 Kw.

Tank Capacity

75 Ltrs. S.S. 304 (2 Nos.)

Wash Cycle

4 inner + 1 Outer

Working heights

860 to 910 mm

Machine Dimensions (In mm)

1500 (L) x 1750 (W) x 1300 (H)

Case Dimensions (In mm) Two Cases

Machine

1600 (L) x 1600 (W) x 1550 (H)

Tanks

1550 (L) x 1000 (W) x 1550 (H)

Net Weight



450 Kgs.

Gross Weight



750 Kgs.

Change parts required

(A) Neck Dia: Bottle holding pocket.
(B) Flat Container: Special type of cup.
