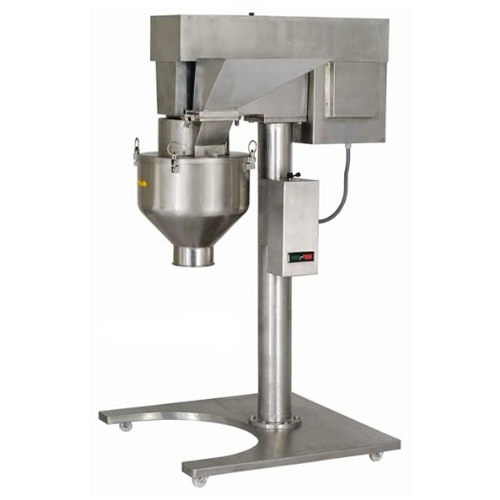

Multi Mill

SALIENT FEATURES

  • All contact parts SS 304/ SS 316
  • Direction of beaters can be changed by reversible switch    from knife to impact toward and vice versa
  • All contact parts can be easily and quickly dismantled for    cleaning
  • Machine is designed for continuous operation
  • Castors are provided for mobility of the machine
  • Flame proof electrical can be provided at extra cost
  • Beaters and scraper blades are hardened and hard chrome    plated

TECHNICAL DETAILS

Output

50 to 200 Kgs. / Hr.

Rotor Assembly Diameter

250 mm Approx.

Rotor Speed

750 / 1500 / 2300 / 3000 RPM

Beaters

12 Nos. knife and impact edges and 2 Nos. scraper blades

Screen dimension

Inner Diameter 260 mm / Height 135 mm

Motor

3 Hp / 1440 RPM / 440 V. / 50 Hz. AC

Starter

"DOL" with reversible switch

Material charging height

1445 mm

Material discharging height

730 mm

Net weight (Approx.)

275 Kgs.

Gross weight

425 Kgs.

Machine Dimensions

870 (L) x 965 (B) x 1630 (H)

Case Dimension

1200 (L) x 1550 (B) x 1860 (H)
