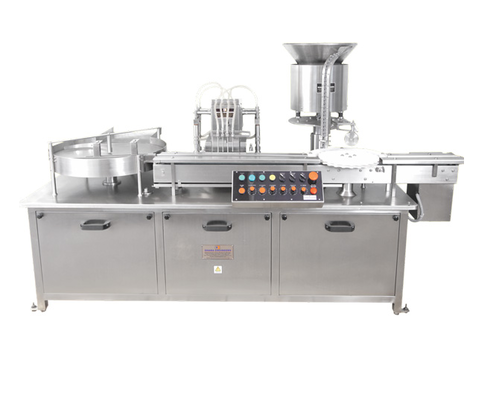

Automatic Liquid Vial Filling and Stoppering Machine

SALIENT FEATURES

  • All exposed parts are of S.S.304, matt finished to avoid any    reflection for achieving the most concentration and    efficiency of  the operator.
  • Co-Eccentric nozzles allows very quick and precise setting    and making unit compact and manageable.
  • Crafted S.S. holders, lapped glass as well as S.S. syringes    and piston and precision built valve system for achieving    very    high accuracy in fill size and drip proof performance.     Precise    setting and accuracy can be easily adjusted on       the machine itself.
  • No vial- No stoppers - No filling system.
  • Easy reach compact panel provides ease and operation.
  • Minimum change over time,from one size of container or fill    size to another.
  • Each important individual part required for    autoclaving/sterilization can be removed easily. There is no    need to shift the whole machine every now and then.
  • Machine height can be adjusted to match with other    machines so as to synchronize with each other efficiently.
  • Can run dry and wet rubber stoppers and supplied with    liquid collecting tray.
  • Suitable for Food and Beverages, Chemicals,    Pharmaceuticals, Cosmetic applications and other allied    companies /  industries

TECHNICAL DETAILS

Filling Heads

2 Heads

Output/ Hour

4000 Vials (Depending on the nature the liquid and its fill size or volume)

Power Characteristics

440v 3 Phase 50Hz 4 Wire System

Input (Container Dia/ Height)

16mm Dia to 50mm Dia/ Height 75mm Max.

Rubber Stopper

13mm/ 20mm (Slotted & Non-Slotted)

Fill (mg.)

0.1 ml to 50ml

Filling Accuracy

±1 % on Single Dose

Infeed Turn Table

450mm

Outfeed Turn Table

450mm

Net Weight

300 kgs

Machine Length

1500mm

Machine width

800mm

Machine height

1400mm
