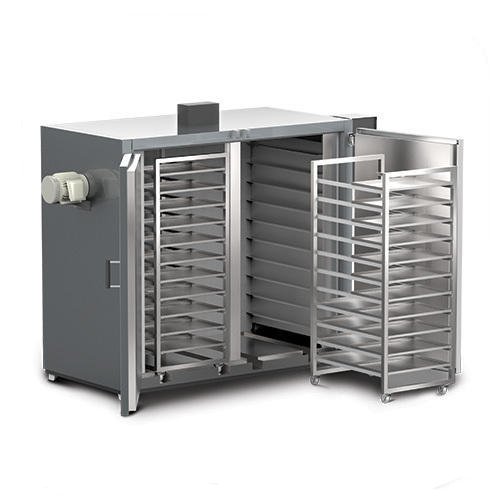

Tray dryer

Product Description

The Tray Dryer offered by us is used for diverse drying applications like food, electrodes, bakery, plastic & powders and drying of pigments. The Vacuum Tray Dryer is used in the industries like Pharmacy where drying and heating are the essential parts of the manufacturing process

Electrical heating

The Air inside the Tray Dryer is heated by "U" tube S.S.304 air heaters each of 1 KW.The heaters are fitted on the sides of the dryer to facilitate uniform heating. Maximum temperature attained inside the dryer is 100' C and will be indicated and controlled by a Digital Temperature indicator cum controller over full range of heating load.

Total heating load for it will be

12 Trays Dryer - 4 KW
24 Trays Dryer - 6 KW
48 Trays Dryer - 12 KW
96 Trays Dryer - 24 KW

The heaters will be inserted inside tubular pipe to prevent it from becoing RED HOT. The terminals of the heaters will be brought outside the dryer to make it more safe for operations for solvent based products.

Air Circulation

Air inside the dryer is circulated by one heavy duty axial flow S.S.304 or alluminum blower fitted on a shaft of and driven by l H.P. through belt. The special design of the Blower ensures uniform air circulation so that there is uniform air current over the entire charge loaded in the Trolley inside the dryer. The working of the motor is indicated by lamps in the control panel.

Trays

Trays will be manufactured from 1.6 mm SS 304 sheets.Its dimensions are 32" x 16" x 1 l/4". The Trays have rounded corners with' mirror finish from inside and outside. SS 316 quality is available on demand.

Racks And Trolleys

Racks are provided for trays insdie the Dryer. They are of fixed type for 12 and 24 Tarys Models. For 48 and 96 Trays Models.

Racks are provided with wheels to slide them in and out of the Dryer. An additional S.S, trolley for Racks for outside movement can be provided on request

NO. OF TRAYS

EXTERNAL SIZE
W x D x H

CHAMBER SIZE
W x D x H

HEATER   LOAD

NO. OF DOOR

NO. OF BLOWER

NO. OF MOTOR (HP)

NO. OF TROLLEY

12

54” x 26” x 54”

33” x 18” x 36”

         5 KW

1

1

1 x 0.5

-

24

76” x 48” x 54”

33” x 36” x 36”

12 KW

1

2

2 x 0.5

01

48

80” x 48” x 86”

40” x 36” x 72”

18 KW

1

2

2 x 1.0

01

96

140”x 48”x 86”

80” x 36” x 72”

30 KW

2

2

2 x 1.0

02

192

140”x 82”x 86”

80” x 72” x 72”

56 KW

2

4

2 x 2.0

04
