Automatic Rotary Rinsing Bottle Washing Machine

SALIENT FEATURES

Capacity: 2000bph-6000bph Fitting Bottle Size: H:150-300mm D:50-90mm CE,ISO

TECHNICAL DETAILS

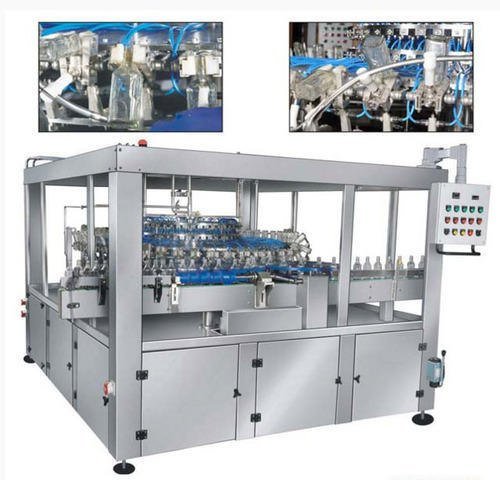

ZPC-12 Auto-bottle rinsing machine adopts the high technology from aboard, by adopting gyration method on rinsing device, it can automatically complete working process from bottle entry, bottle rinsing, water removing to sanitize bottle out. It is most advanced and suitable device to rinse the bottles made of PET or glass bottles. It can become a complete auto-product line if it works with filler and sealer together.

Main Technical Parameter

  • Rinsing Capacity                                    3000bottles / hour
  • Fitting Bottle Size                                  Height: 150-300mm         Diameter: 50-90mm
  •  Running Method                                   continuous gyration running
  •  Number of Rinsing Position                  12 Pieces
  •  Power of the Machine                          1.5 kw
  • Overall Weight of the Machine              700kg
  • Overall Dimensions                               1400×1200×1800mm
